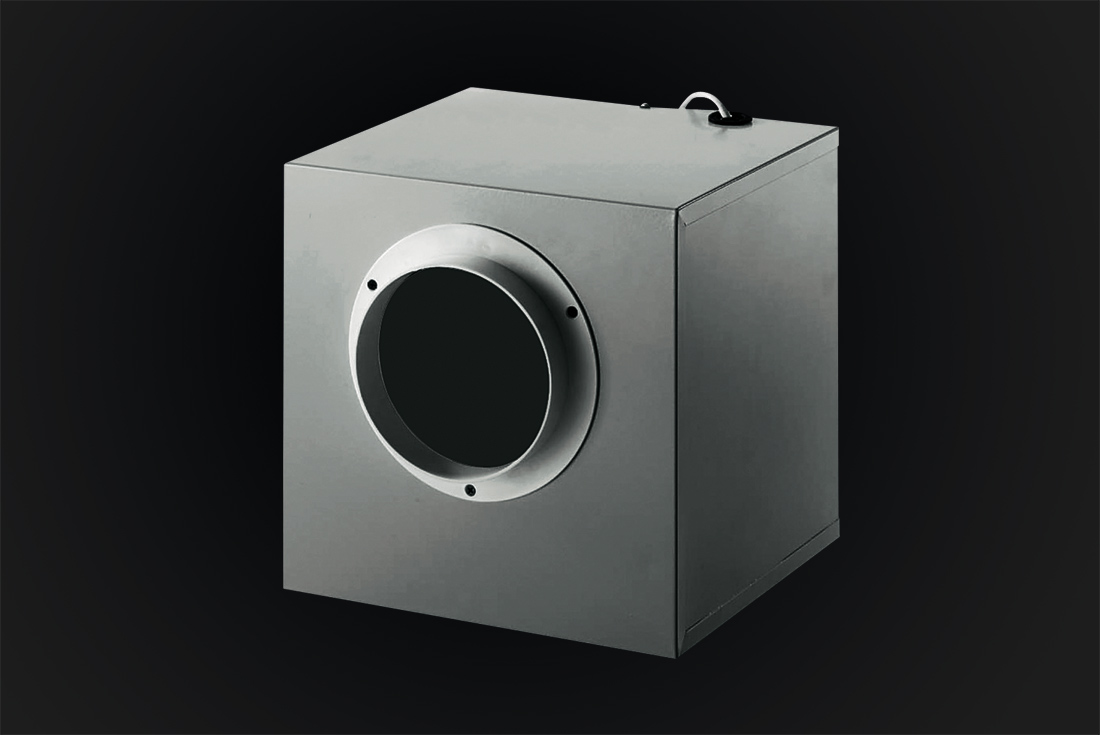

Motore remoto AMR09

MOTORS

PHOTO GALLERY

TECHNICAL DATA

AMR09

Airflow IEC: 680 m3/h
Motor Pressure intensive speed: 560 Pa
Power: 235 W
Noise Level: 51-72 dBA
Cable: 10 mt
Inlet pipe flange: Ø 150 mm

Ø150

Round junction with dimensions Ø 150 mm

* = Optional
The airflow depends on the pipe diameter, on the number of curves and on the length of the duct. A 10mt. linking cable is supplied.
